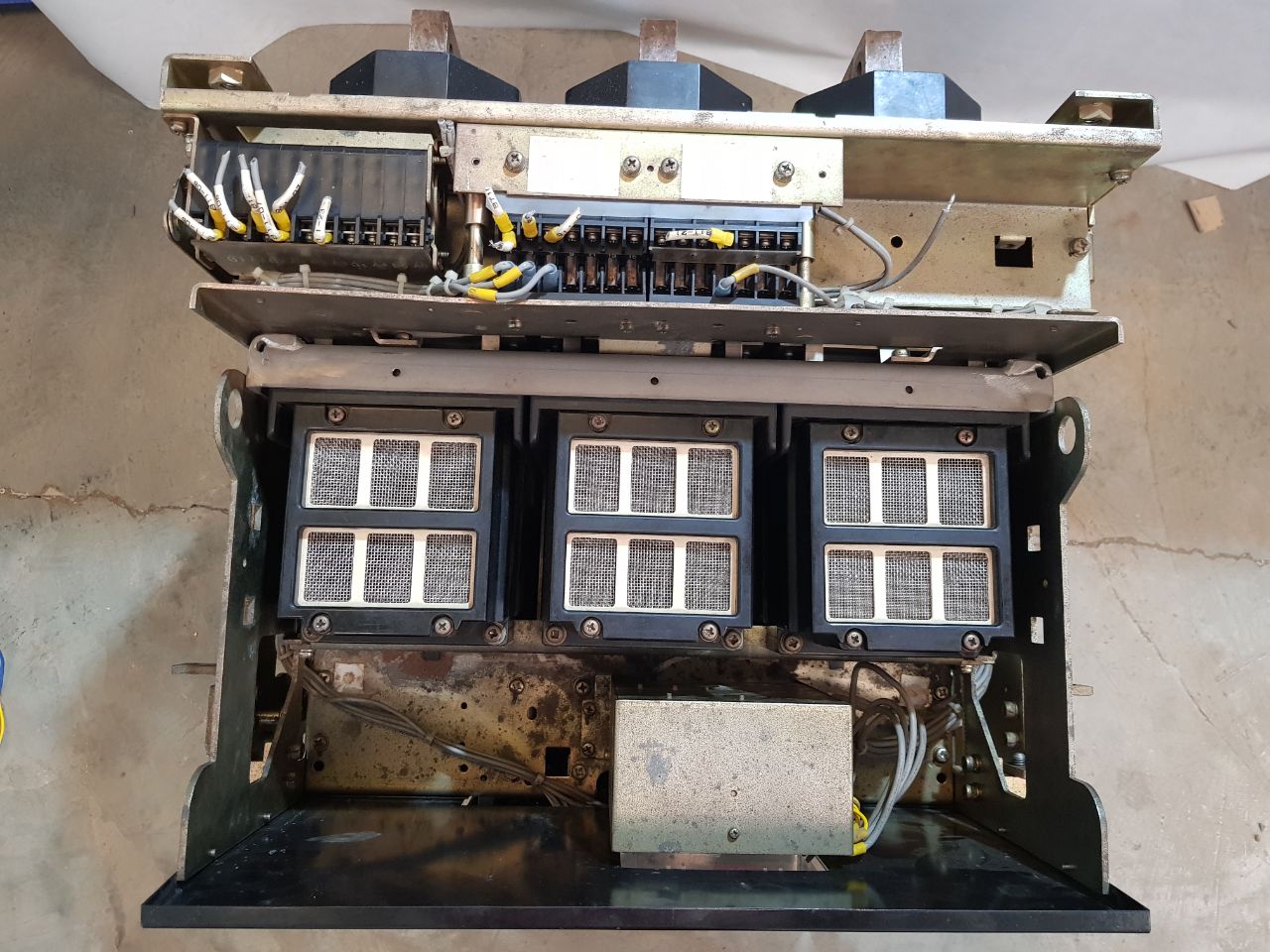

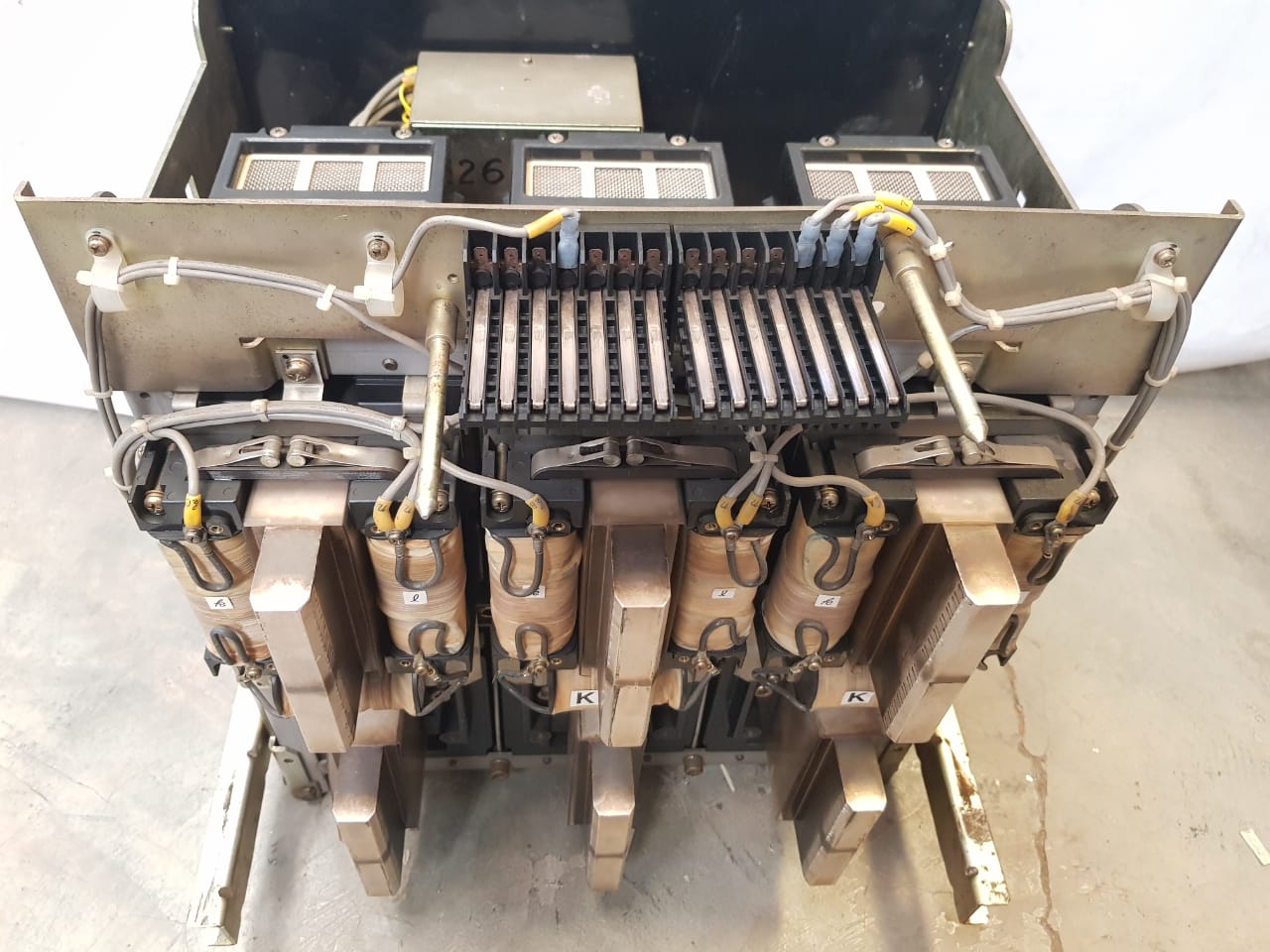

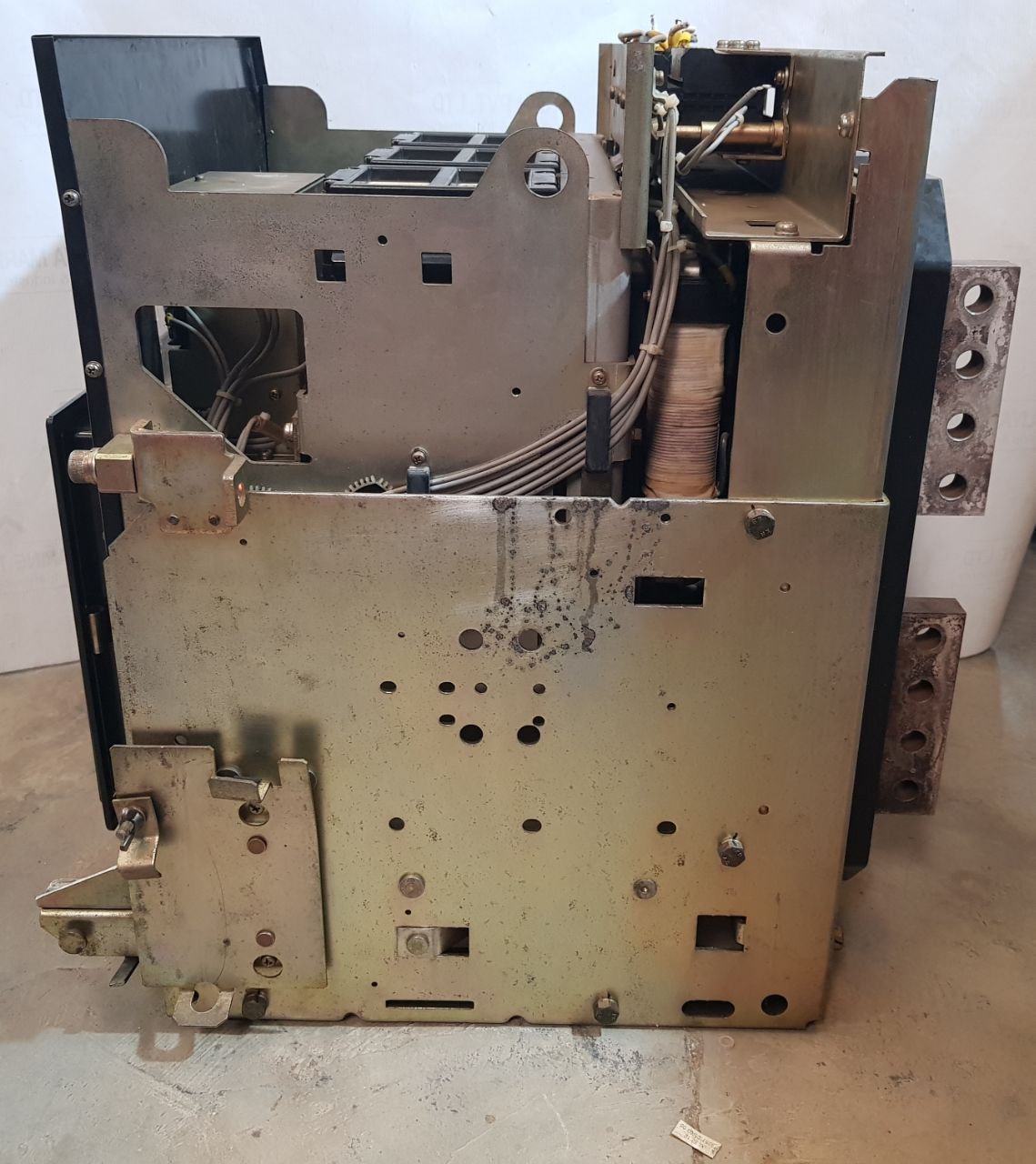

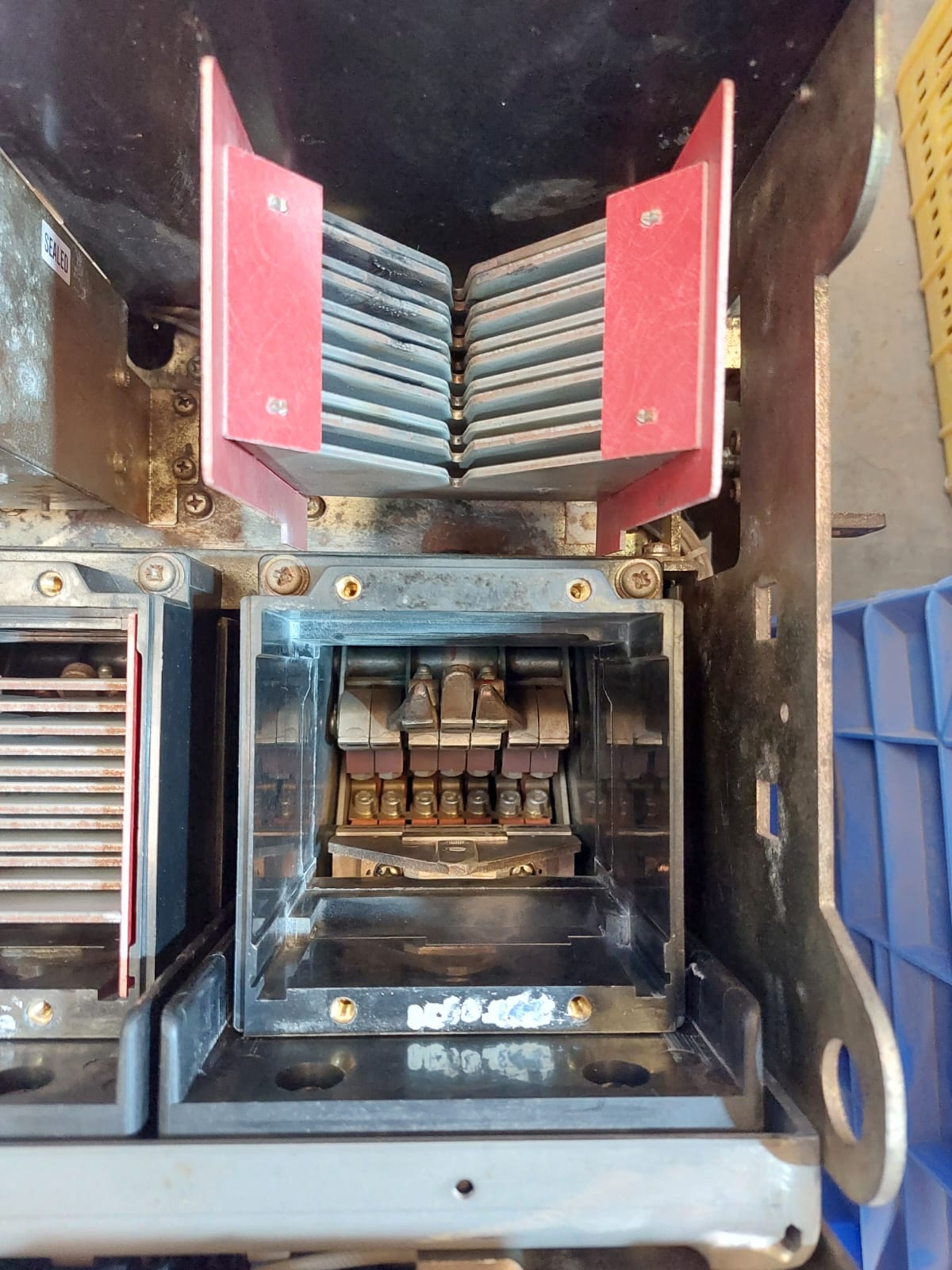

TERASAKI AT40 3 POLE AIR CIRCUIT BREAKER ATPS0027-B
TERASAKI ELECTRIC CO.,LTD
TEMPOWER
AIR CIRCUIT BREAKER
AT40
POLES: 3
OPERATIONAL VOLT.(UE): 690 VAC
RATED FREQUENCY: 50/60HZ
RATED CURRENT (IN): 4000 A
STANDARD: IEC947-2
UTILIZATION CAT.: B
RATED UE WITH/WITHOUT
INST INST
BREAKING 690V 50/50KA
CAPACITY 550-600V 65/65KA
(ICU)
ICS=100%
ICU220-500V 85-65KA
SHORT TIME WITH 1SEC 65KA
-STAND CURRENT(ICW) 3SEC 50KA
ATPS0027-B
AMB. TEMP. 45°C

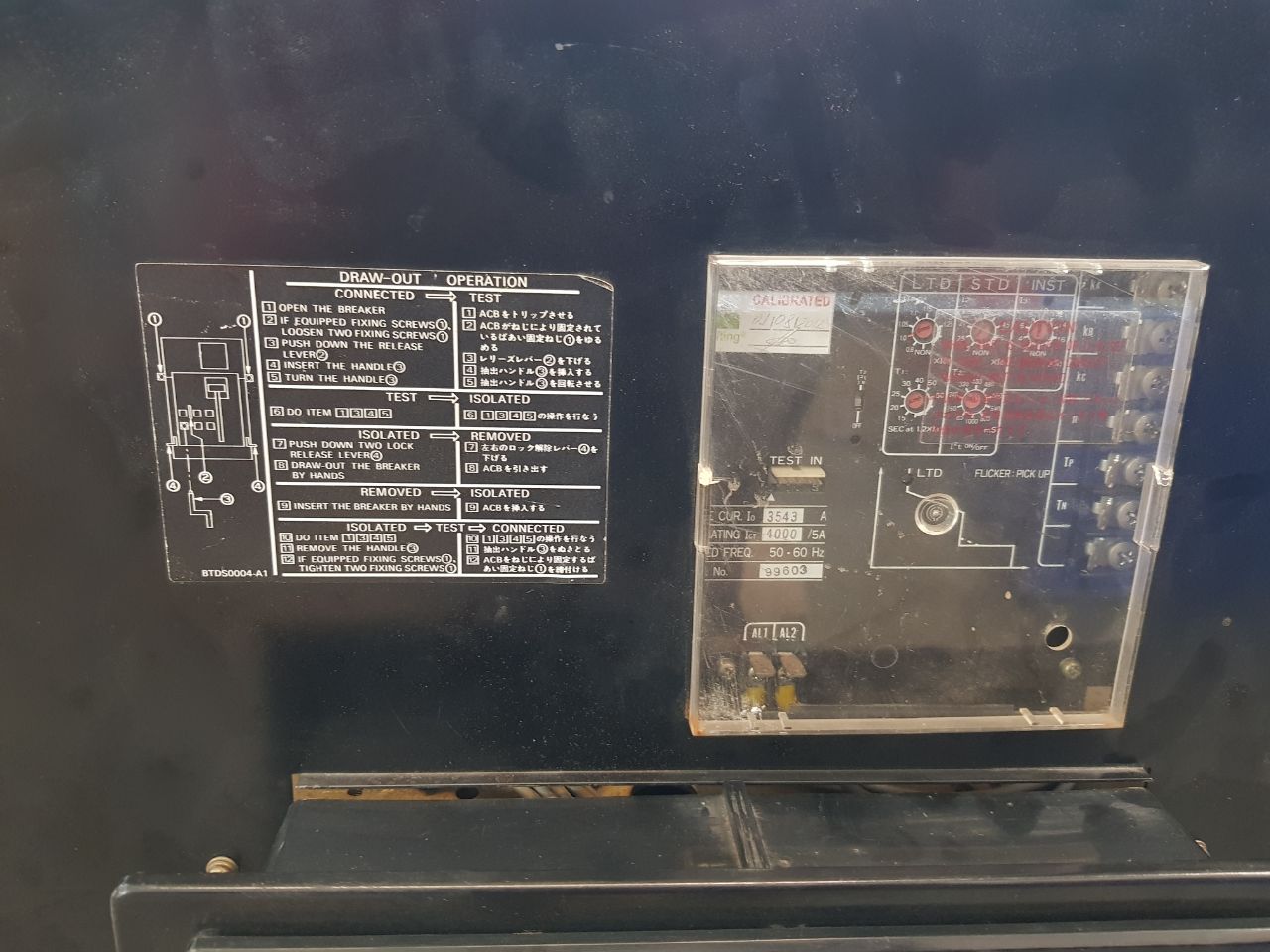

BTDS0004-A1

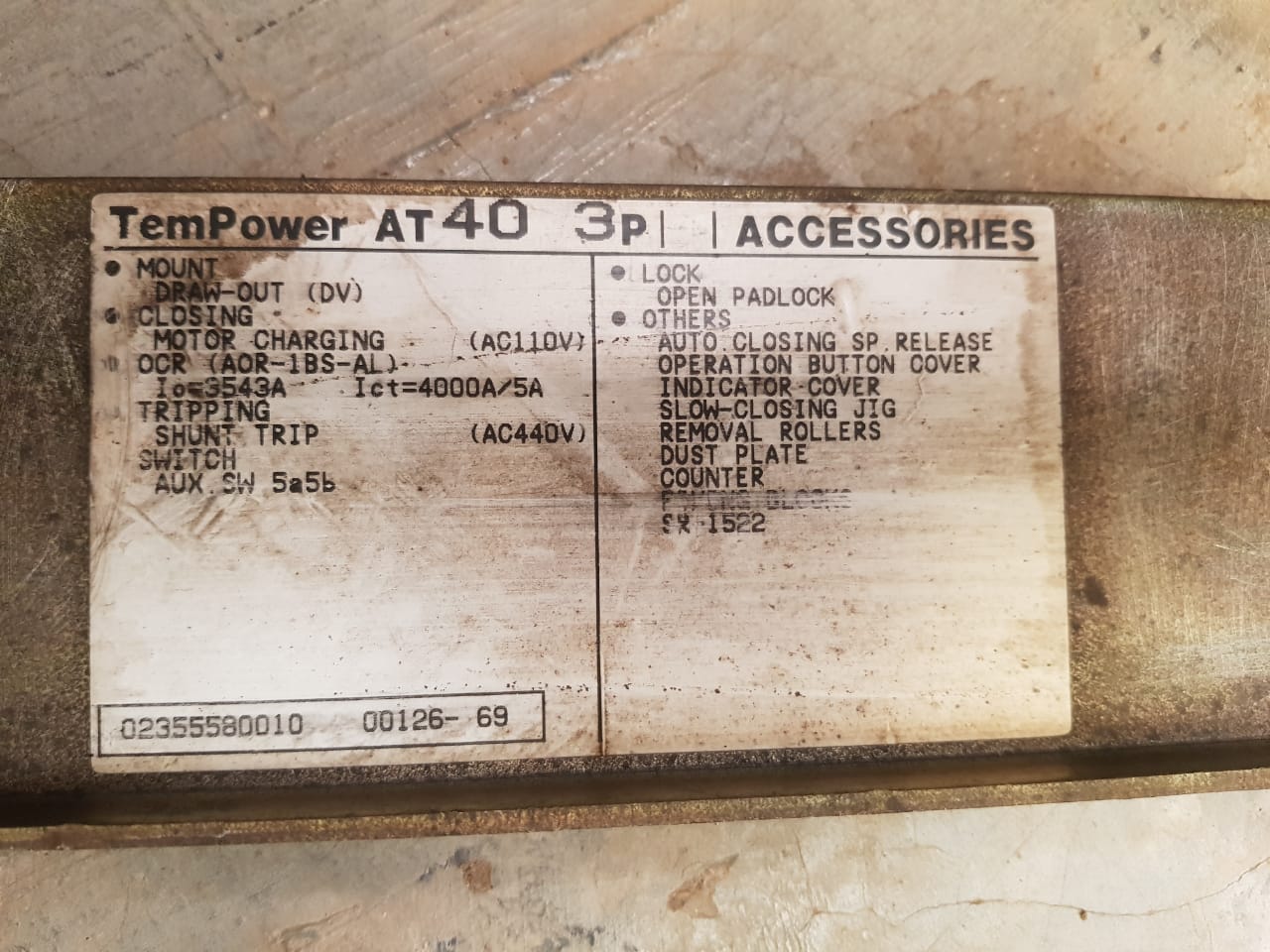

BASE CUR. IO 3543 A
CT RATING ICT 4000/5A
RATED FREQ. 50-60HZ
MADE IN JAPAN
WEIGHT : 159 KG
