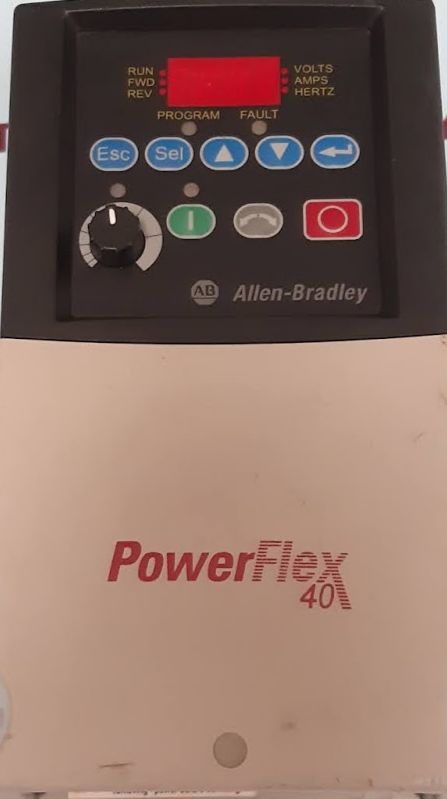

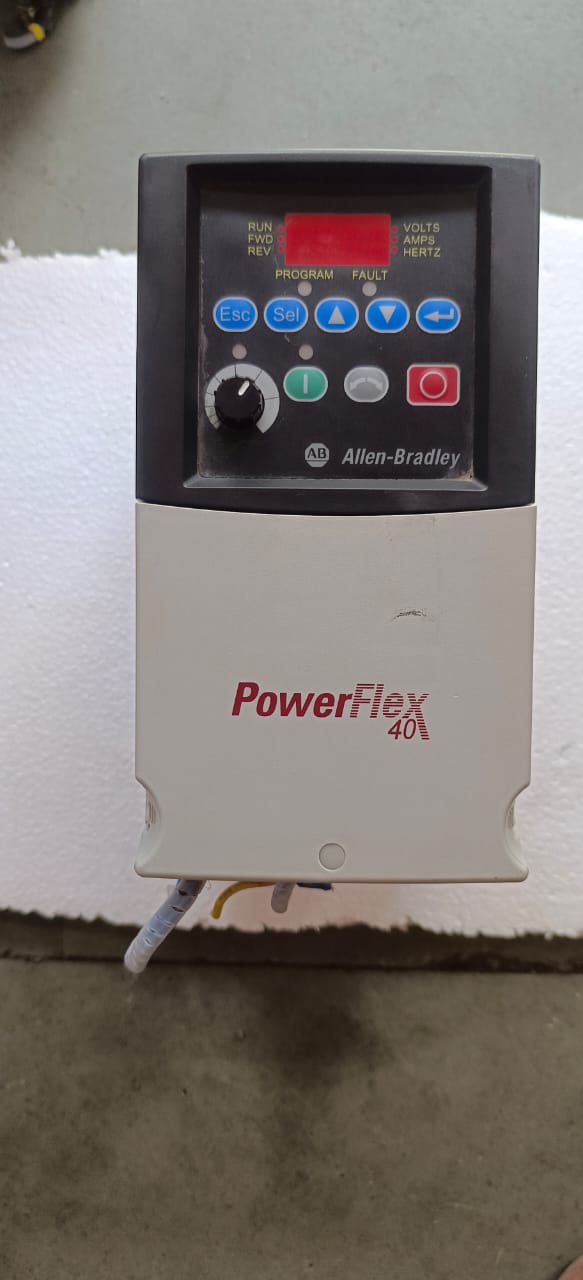

LLEN-BRADLEY POWERFLEX 40 AC DRIVE 22B-D1P4N104
ALLEN-BRADLEY
POWERFLEX 40

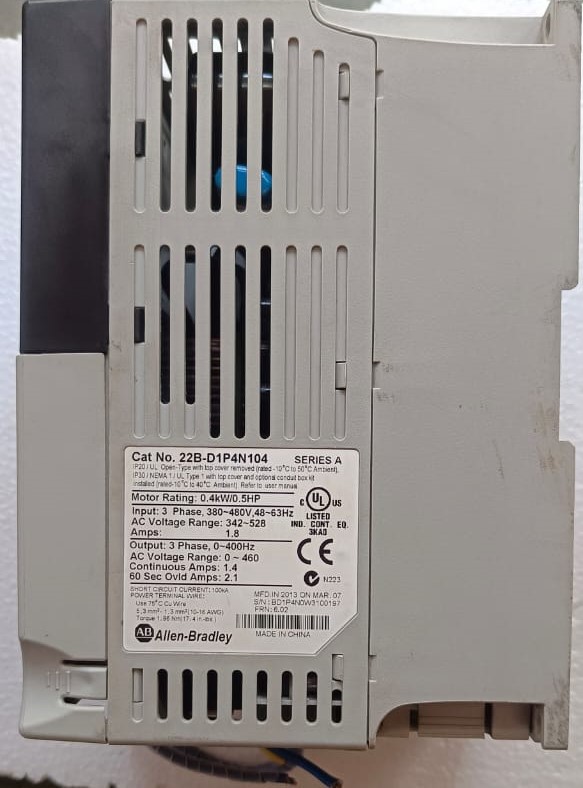

CAT NO:22B-D1P4N104
SERIES A
(RATED -10C TO 50 C AMBIENT )
IP20/UL
IP30/NEMA1/UL TYPE 1
INPUT: 3 PHASE,380-480V, 48-63HZ
AC VOLTAGE RANGE: 342-528
AMPS: 1.8
OUTPUT:3 PHASE, 0-400HZ
AC VOLTAGE: 0-460
CONTINUOUS AMPS: 1.4
60 SEC OVLD AMPS: 2.1
SHORT CIRCUIT CURRENT: 100KA
USE 75ºC CU WIRE
5.3 MM2-1.3 MM2
TORQUE 1.96 NM (17.4 IN LBS )
FRN: 6.02
MADE IN CHINA
WEIGHT:1.650KG
CONDITION: USED 1 PCS
