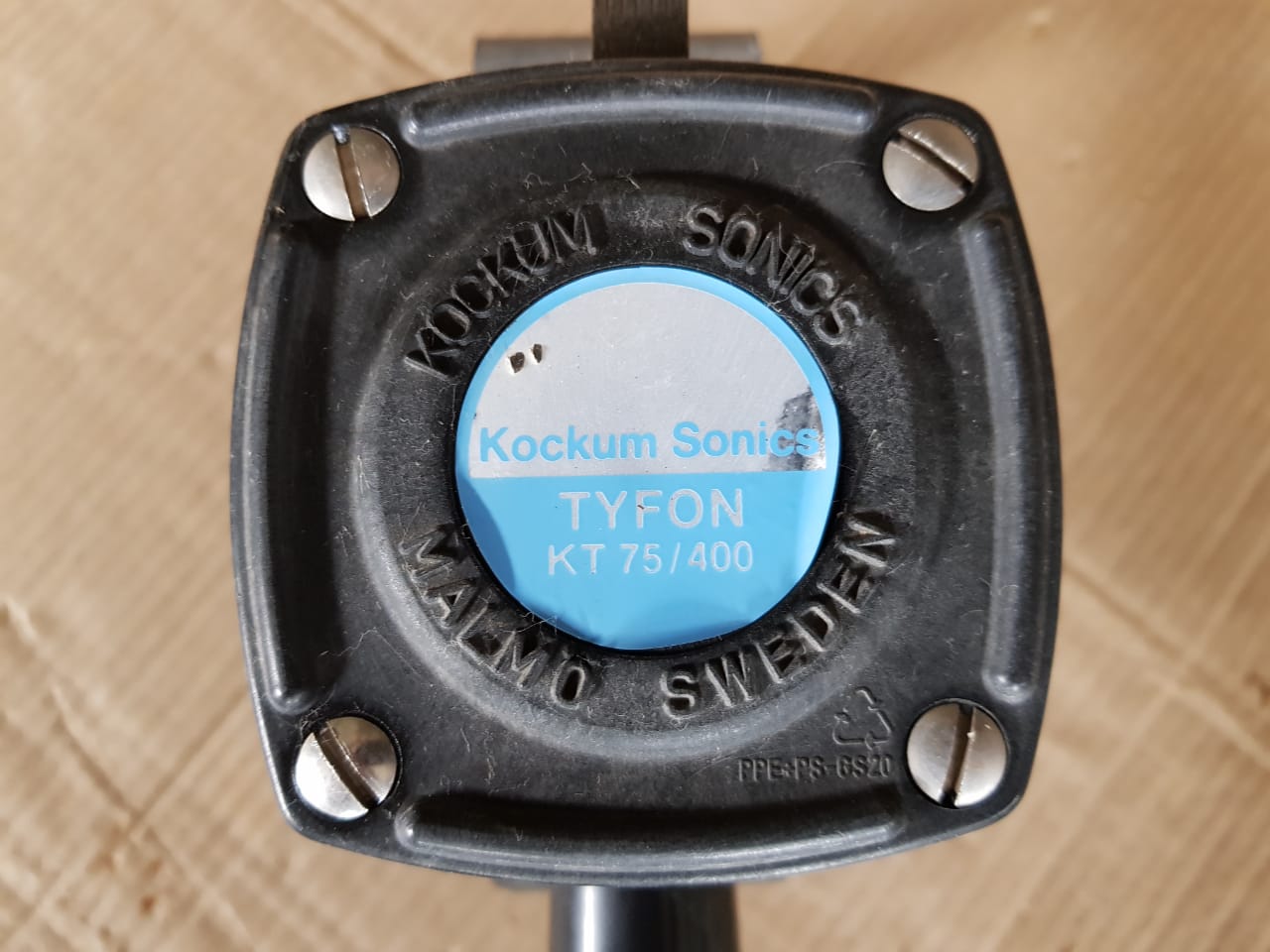

TYFON WHISTLE types
KT 75/400, KTV 75/400
Standard voltage for Solenoid Valve TV 88:
DC: 24V 115V, 230V AC: 115V 230V
Frequency: 400 Hz, completed by power and noise
penetrating harmonics.
Sound level:
Sound Pressure Level 136 dB(A) measured at 1 m,
equivalent to 120 dB(A) at 6 m and 106 dB at 30m
Supply compressed air:
Working pressure: 0,2 - 0,5 MPa* (2 - 5 bar)*
or (29 - 72.5 psi)*
Air consumption: 5 Nl/sec free air (0.18 cf/sec)
Weight:
Whistle only: 0,34kg (0.7lbs)
